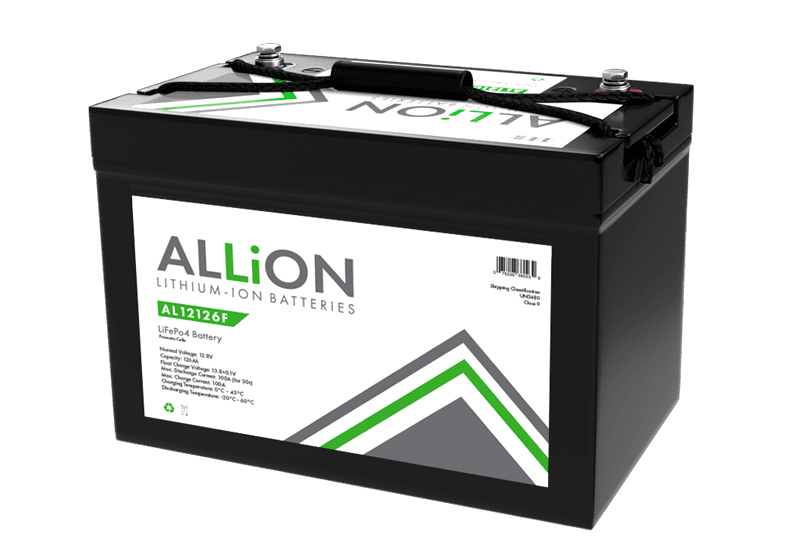

ALLiON 12V 126Ah LiFePo4 Battery

The ALLiON AL12126F Lithium-iron battery is a high performing 12V Deep Cycle battery with a capacity of 126 Amp Hours (Ah). Suitable for RV & leisure applications the ALLiON range of Lithium batteries are much lighter than comparable lead acid batteries and can last up to 4 times as long. They are also safe to use thanks to the integrated battery management system.

The rated cycle life of ALLiON lithium batteries is significantly greater than AGM batteries.  They will deliver between 2000 and 4000 cycles depending on the Depth of Discharge (DoD), compared to an AGM battery which is rated at 300 to 700 cycles for the same DoD.  This superior cycle life lowers the cost of ownership over the battery lifetime and also reduces the number of battery replacements.

The high charge acceptance of LiFePO4 technology means that a fully depleted battery can be recharged in less than 3 hours which means less time spent waiting for the battery to charge and more time for you adventure.



Features and Benefits

Lightweight - 60% lighter than lead acid batteries
Onboard Battery Management System
Excellent cycle life (2000 to 4000 cycles)
Safe $ stable LiFePO4 technology
Fast recharge with overcharge protection

Specifications

Part Number: AL12126F
Nominal Capacity : 126Ah
Nominal Energy : 1.6kWh
Nominal Voltage : 12.8V
Nominal Charge Voltage : 14.6V +/- 0.2V
Float Charge Voltage : 13.8V +/- 0.2V
Recommended Charge Current : < 50A
Discharge Cut-off voltage : 9.6 - 11V

Dimensions (LxWxTH): 330 x 172 x 220 mm
Weight* (kg): 15.0kg
Voltage: 12
Bluetooth Connectivity : No



Note: * Weights may vary +/- 5%
          * Due to shipping restrictions this item is only available as pick-up

(AL12126F)

SKU AL12126F
Brand ALLiON
